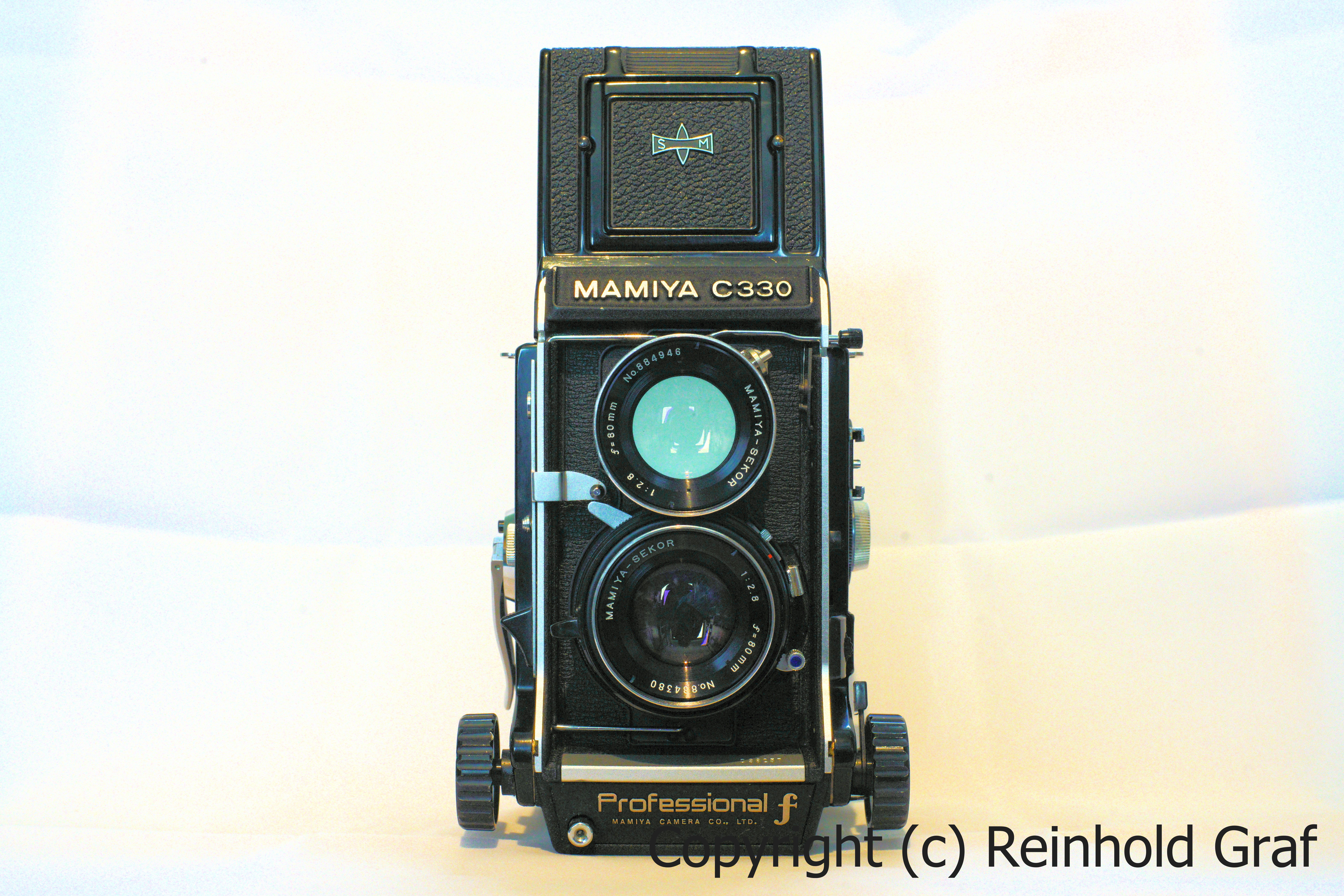

Mamiya C330 Professional F
Olympus OM-2n
The Story Behind

To accompany my Yashica Mat 124G as a more sturdy alternative, I picked up a C330 Professional F. This thing is build like a tank ;)

Technical Data
Manufacturer Mamiya
Built 1972 - 1982
Type TLR / Twin Lens Reflex
Film Type 120 or 220, switched by rotating pressure plate
Viewing Lens Interchaneable (Mamiya Sekor 2.8/80mm default)
Taking Lens Interchaneable (Mamiya Sekor 2.8/80mm default)
Film advance Single 360 edgree clockwise stroke
Shutter cocking Part of film advance stroke
Shutter releases Two, Side (plastic tab) and chin. The side release incoroprates a lock operating on both releases.
Parallax compensation Automatic, all lenses (if 55/65mm correction pate employed)
Exposure compensation As parallax compensation
Lens focus scale Hexagonal rod, manually adjustable scales.
Interchangeable screens Yes
WLF type Type 2
Flash shoe Side, cold
Removable back Yes
Multi exposure Yes
Cable release Yes
Tripod screw 3/8" with insert for 1/4". Note that there is supposed to be a small inner locking screw, but it is often missing.
Others Focus knob lock, texture leatherette finish. Film tab holder introduced, which incosporates the 120/220 setting window. Some models had black side panel rims and black rims on the film spool retainers.
Weight 1390 g
Dimensions (WxHxD)
w/o lenses
WLF closed:
123mm x 170mm x 110mm
WLF opened:
123mm x 220mm x 110mm
Zubehör
System Summary Mamiya TLR System Summary by Graham Patterson
Sonstiges
Im Netz Lights in the Box
bip mistry film and photo
Oldcamreview - the G.A.S. station
A photohgrapger's garden
Cameron Kline
Anatomy Films
Jittery Pixel
Lomography
Panta Rhei
Camera Wiki
Mein Eindruck
May 2018 Massive, brick, sturdy, ... precise.
