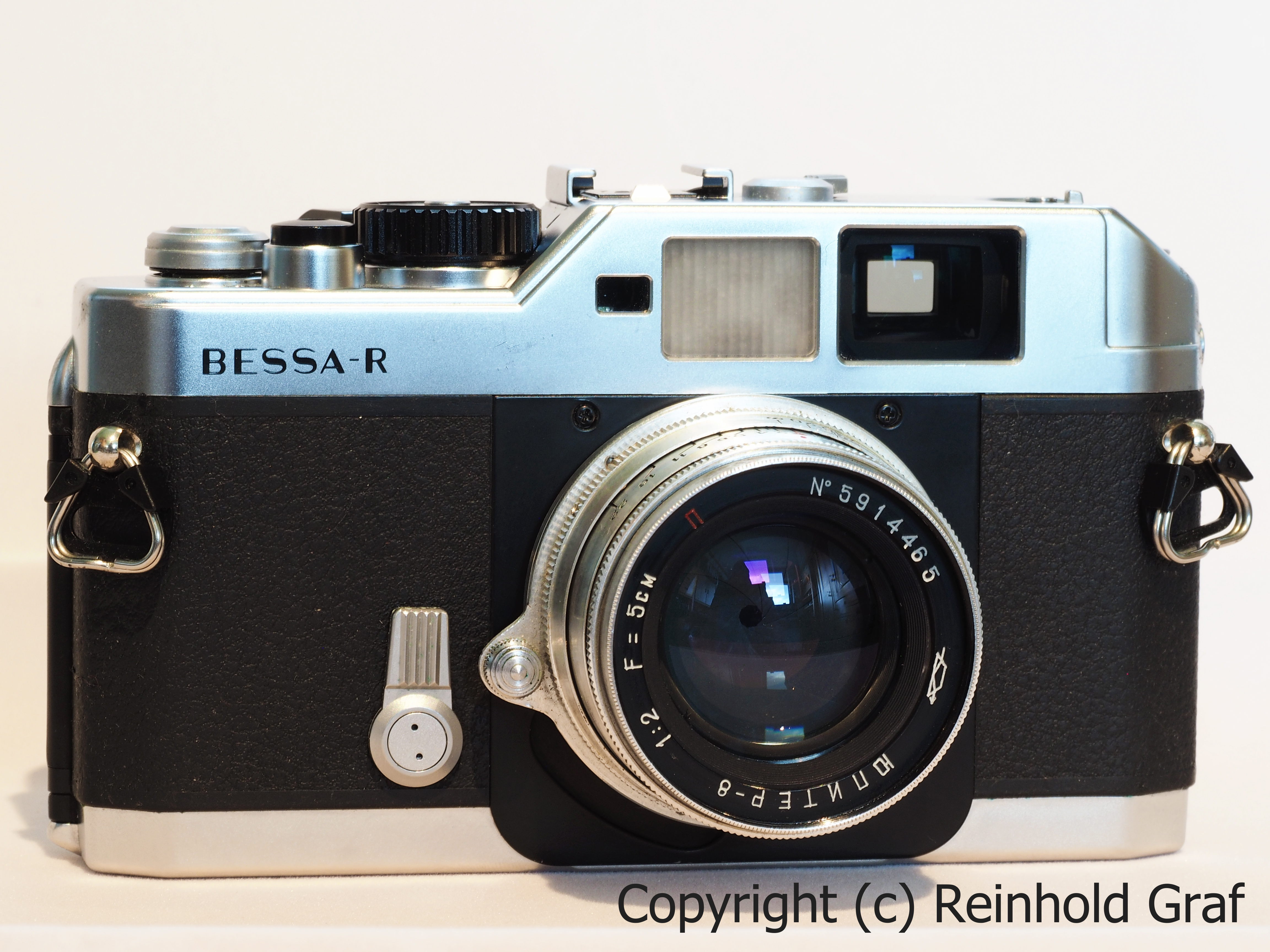

Voigtländer Bessa R
The Story Behind

My second M39, this time with metering included.

Technical Data
Manufacturer Cosina
Build 2000 ff.
Type 35mm camera with focal plane shutter and TTL metering
Film Format 35mm film, 24x36mm
Lens Mount L-Mount
Shutter Vertically moving metal focal plane shutter B, 1-1/2000 sec.
Self-Timer Mechanical self timer with 10 sec operating time
Focusing Coincidence type
Exposure Display mark LED....Over exposure warning
mark LED....Good exposure indication
mark LED....Under exposure warning
Exposure Metering System Center-weighted average metering by pressing Shutter release button
Exposure Coupling Range EV1-19 (ISO 100, F1.4, 1 sec.-F16, 1/2000sec.)
Flash Terminal X synchronic contact synchronized at 1/125 sec or lower speed
Film Advance By single-lever action with 135° and 30° stand-off
Film Rewind By film rewind button and film rewind crank
Frame Counter Additive type with autoreset by opening the back cover
Power Source Two 1.5V Alkaline batteries (LR44) or Silver batteries (SR44)
Dimensions 135.5(W)x78.5(H)x33.5(D) mm
Weight 395g
Accessories

Others
On the web Casual Photophile
Thorley Photographics
Watkins
Journal of a Photo Boy
Mike Elek
Rangefinderforum
CameraQuest
BKS Picture
My Impression
June 2018 First impression while unpacking ... it's beautiful and it has a very large bright viewfinder.
