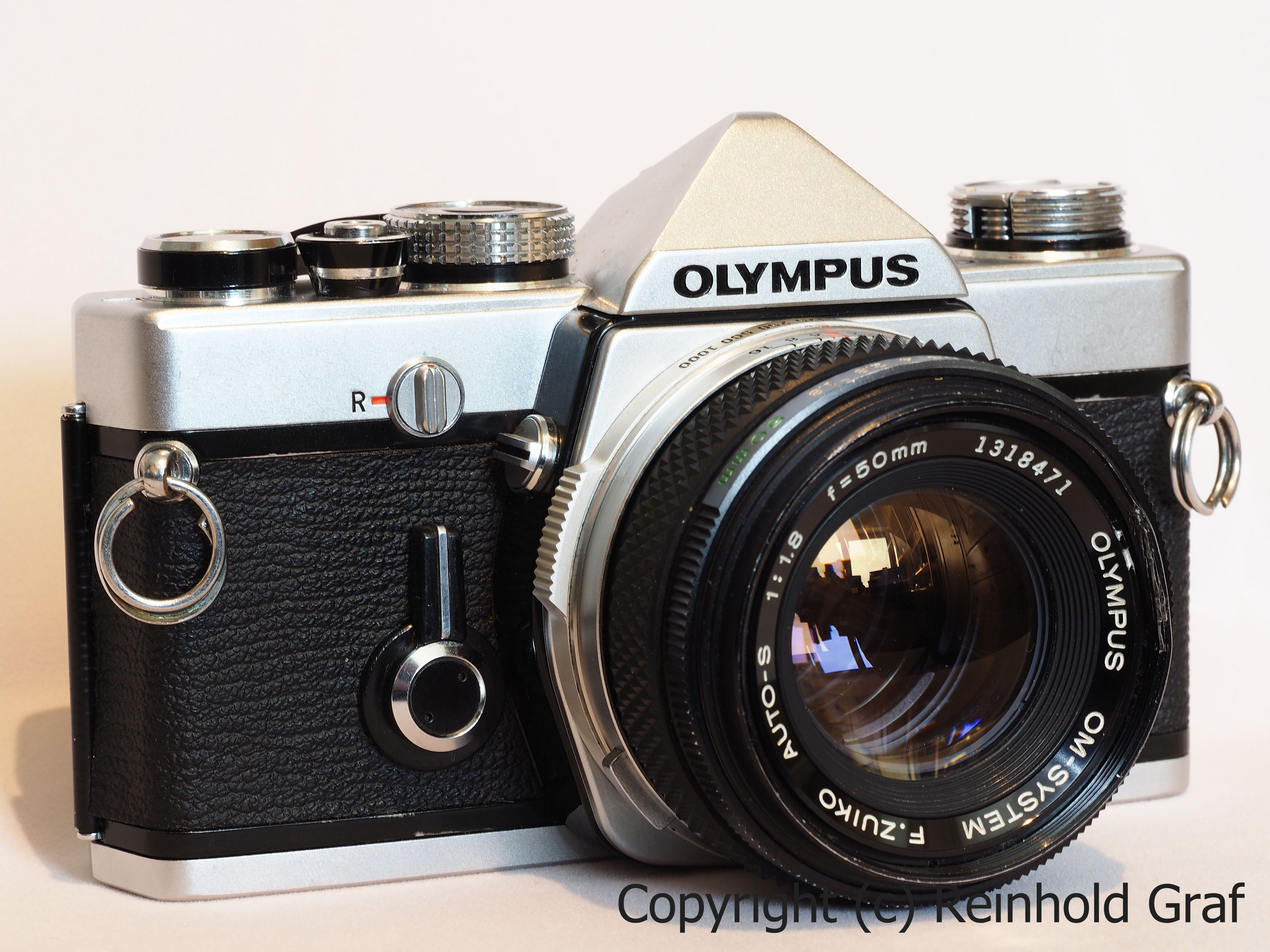

Olympus OM-1n
Olympus OM-2n
The Story Behind

Zu der OM-2n mit elektronisch gesteuertem Verschluss gesellt sich noch eine OM-1n ... voll-mechanisch. Lediglich der Belichtungsmesser benötigt eine Batterie.

Technische Daten
Manufacturer Olympus Optical Co., Japan
Build 1979ff
Price
Camery Type 35mm Single Lens Reflex with focal plane shutter
Film Format 24 x 35 mm
Lens Mount Olympus OM
Shutter Focal plane shutter; ring mounted control; with speeds from 1 to 1/1000s plus B
Self-Timer 4-12 second delay lever type; can be stopped and reset after actuation
Exposure Measurement Two highly sensitive CdS cells located on either side of the eypiece provide through-the-lens open aperture light measurement; Zero-method with needle visible in viewfinder; On-Off Switch located atop camera
Esposure Range EV 2-17 (ASA 100 with F1.4 standard lens)
Battery 1,35 V mercury battery (Eveready or UCAR EPX625, Mallory PX625 or equivalent)
Film Speed Range ASA 25-1600
Viewfinder Pentaprism type wide-vision finder shows 97% of actual picture field; Interchangeable focusing screens; Visible exposure meter needle
Viewfinder Magnification 0,92x at infinity with standard 50mm lens
Viewfinder Apparent Field of View 23 Grad 30 Minuten x 35 Grad
Reflex Mirror Oversize; quick return type with mirror lock-up control
Flash Contact FP-X switch type contact
Flash Synchronization With electrix flash (X) 1 to 1/60s
with class "M" bulbs (X) 1 to 1/15s
with class "F" bulbs 1 to 1/15s
with focaql plane bulbs (FP) 1/60 to 1/1000s
Hot Shoe Socket Built in; Easy to attach Accessory Shoe 1 available
Film Advance Manual:
Ratchet type film advance; May be advanced in one stroke or several short strokes for a total of 150 degrees rotation; pre-advance angle 30 dgree; Build-in prevention against double advance with double exposure override capability
Motor Drive:
With motor drive 1 unit attached, single frame and continuous advance at a speed of 5 frames per second (at exposure above 1/500s with fresh batteries and at normal temperature and humidity)
Exposure Counter Progressive type from "S" (Start) to 36 and "E" (End). Countzer automatically resets to "S" when camera back is opened
Film Rewinding Rewind crank with automatic-resetting rewind release lever
Camery Back Removable hinge type; INterchangeable with Recordata Back 1 and 250 Film Back 1
Dimensions 135 x 83 x 50 mm (WxHxD) (w/o Lens)
Weight 510g (w/o battery and lens)
Sonstiges
Im Netz Olypedia
Casual Photophile
MIR
emulsive film photography
Utah Film Photography
Film Photography Project
35mmc
my Impression
Dec 2018 Service 2018 @ OM-Labor
