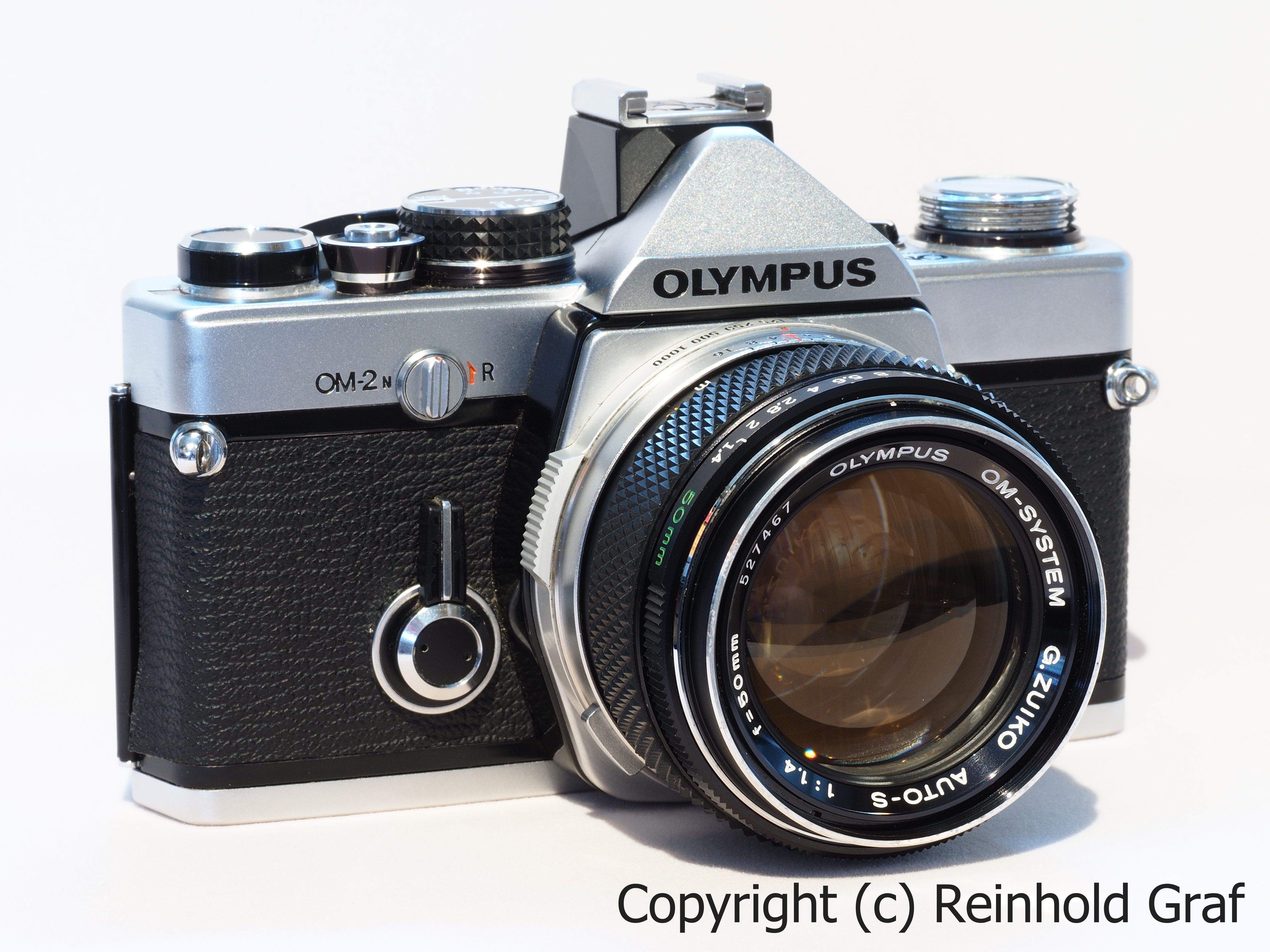

Olympus OM-2n
Olympus OM-2n
The Story Behind

Die Olympus-Linsen sollen einen hervorragenden Ruf haben. Das wollte ich mir einfach mal im Original ansehen und ... da hing doch eine OM-2n dran.

Technische Daten
Manufacturer
Olympus Optical Co., Japan
Built 1979 - 1984
Camery Type 35mm Single Lens Reflex with automatic exposure control electronic focal plane shutter.
Film Format 24mm x 36mm
Lens Mount OLYMPUS OM Mount, bayonet type; rotation angle 70°, flange back focus distance 46mm.
Shutter Focal plane shutter, automatic exposure control from 120 seconds to 1 /1,000 second (ASA 100, F1.2, at normal temperature and humidity). Manual exposure: B, 1—1/1,000 sec., ring mounted control.
Synchro FR-X switch type contact, incorr.ect flash prevention. (Accessory shoe mount for X contact) Automatic exposure control: Aperture-preferred automatic exposure control electronic shutter type. TTL Direct (off-the-film) Light Measuring System. Measuring range: EV-6.5 to EV18 (at ASA 100 with F1.2 lens).
Exposure Range Shutter speeds from 120 sec. to 1/1,000 sec, (at normal temperatures and humidities). Light sensors: 2 SBC sensors.
Large Exposure Compensation Dial ±2EV (within the ASA film speed range). Automatic flash exposure: Direct contacts for TTL Auto Flash (full automatic flash with T32, T20 or T10 electronic flash).
Manual Exposure TTL type.
Measuring System Full aperture center-weighted metering. Measuring range: EV1.5-EV17 (ASA 100 with F1.2 standard lens). Light sensors: 2 CdS sensors. Zero-method with needle visible in viewfinder.
Film Speed Setting ASA 12—1600, set by lifting and rotating film speed dial.
Auto/Manual Selection By selector lever.
Power Source Two 1.5V silver oxide batteries SR44 (Eveready EPX-76 or equivalent).
Battery Check 3-stage battery check lamp (light emitting diode) indicates full voltage, depleted charge, and exhaustion of batteries. Shutter lock to limit drainage.
Mirror Unlock
Mirror lock-up can be released simultaneously with battery check.
Viewfinder
Pentaprism type wide-vision finder.
Focusing Screens
Wide selection of interchangeable screens. Supplied with Focusing Screen 1—13 (microprism split image matter type).
Finder View-Field
97% of actual picture field.
Viewfinder Magnification
0.92X at infinity with 50mm- lens.
Apparent field of view
Vertical 23°30', horizontal 35°.
Indicators in viewfinder
3-stage selector lever. (Auto: Shutter speed indicator. — Manual: exposure index. — Off: nothing). Exposure compensation marker. Charge/Auto check lamp (with T-series Electronic Flash mounted).
Reflex Mirror
Oversize, quick return type (without lock-up).
Film Loading
OLYMPUS easy loading.
Manual film advance
Lever type with 150° angle for one long or several short strokes, pre-advance angle 30°, self-cocking, double advance and double exposure prevention.
Motor drive advance
With Motor Drive 1 unit attached, single frame and continuous advance at speed of 5-frame per second (at exposures above 1/500 sec., with fresh batteries and at normal temperature and humidity).
Exposure counter
Progressive type with automatic reset.
Film rewind
Crank type, with rewind release lever setting, automatic return.
Self-timer
4—12 second delay lever type with 180° maximum angle; can be stopped and reset after actuation.
Camera back:
Removable hinge type, with memo holder. Interchangeable with Recordata Backs 2, 3 and 250 Film Back 1.
Hot shoe socket
OLYMPUS special Accessory. Shoe 4 supplied.
Dimensions and weights
Body only: 136 x 83 x 50mm, 520g
With F1.8 lens: 136 x 83 x 81mm, 690g
With F1.4 lens: 136 x 83 x 89mm, 750g
With F1.2 lens: 136 x 83 x 97mm,  830g
Sonstiges
Im Netz Olypedia
Casual Photophile
120studio.com
MIR
Simon Hawkett's Photo Blog
FOGDOG I
FOGDOG II

my Impression
Dec 2018 Service 2018 @ OM-Labor
