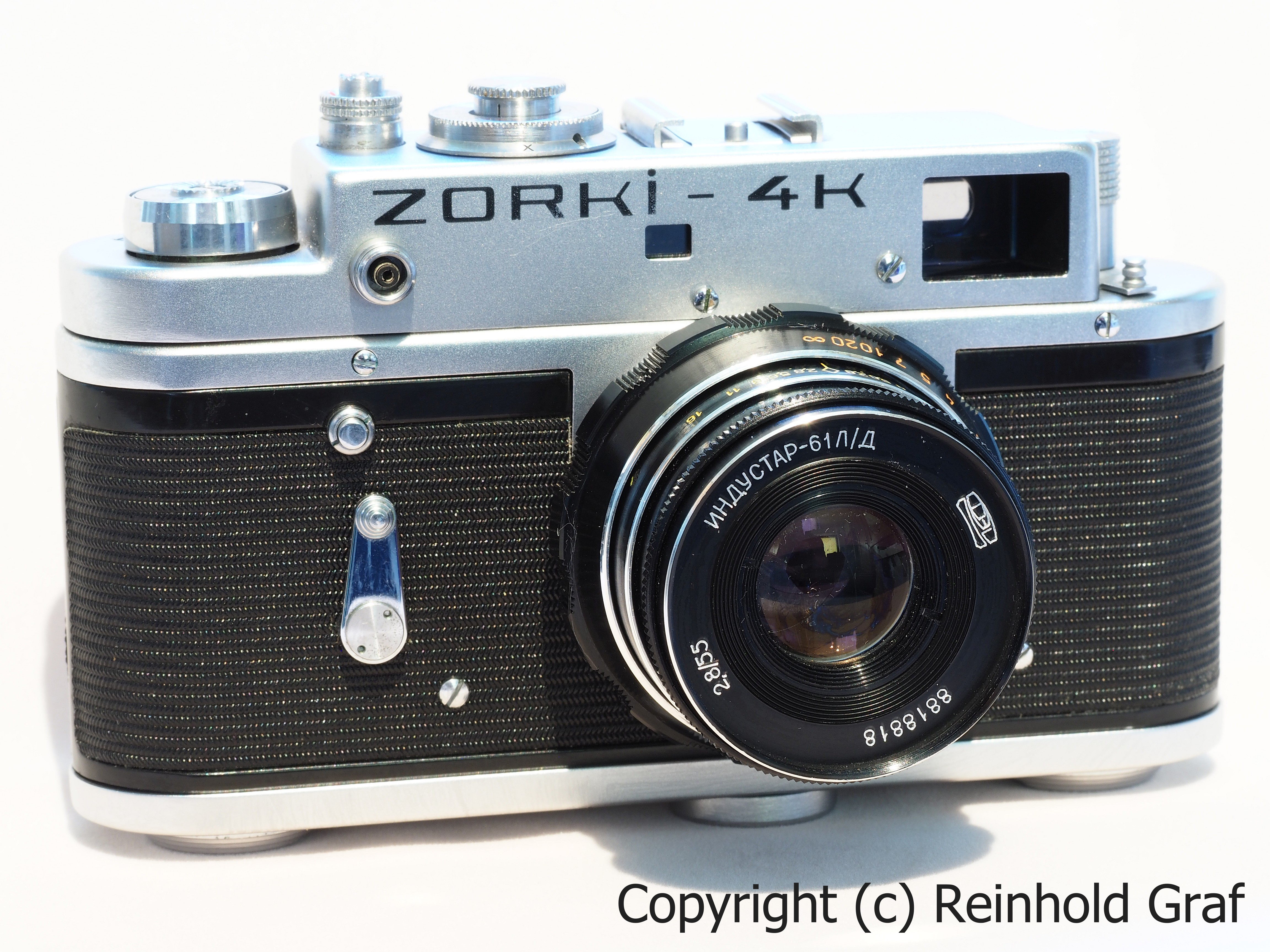

Zorki 4K
The Story Behind
Soviet Heavy Metal ... copying the old Leica RF with M39 LTM.

Technical Data
Manufacturer Krasnogorski Mekhanicheskii Zavod (KMZ)
Price
Production Year 1972 - 1978
Frame Size 24 x 36 mm
Perforated film width 35 mm
Number of frames for one loading 36
Focal plane shutter speeds 1 to 1/1000s (automatic), "B" (by band) and slow shutter speed
Mechanical back focal distance 28.8 mm
Viewfinder eyepiece magnification 1.15x
Eyepiece adjustment +-2.5 diopters
Thread of shutter button for cable release 3.5 x 0.5
Tripod bush thread 1/4"
Overall dimensions of camera w/o case 143 x 88 x 94 mm (W x H x D)
Mass of camera w/o case 579 g w/o lens attached
Miscellaneous
Link(s) Brolen Camera Club
Peter Lausch
Photoethnograpgy.com
Urban Observed
Alfred's Camera Page
Simon Hawkett's Photo Blog
Camerapedia
Roland and Caroline
Guido Studer
Internet Archive

My Impressions
