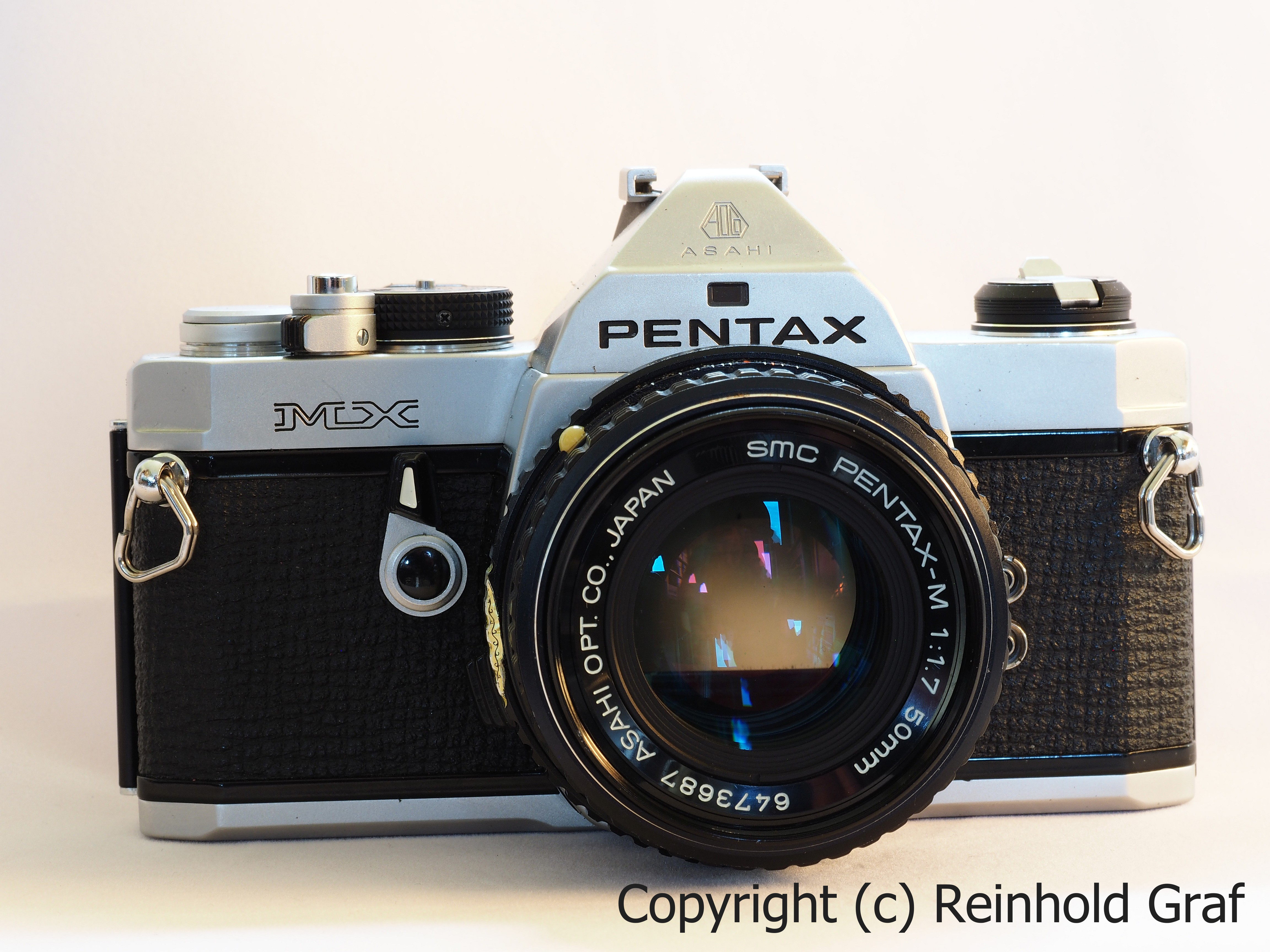

Pentax MX
The Story Behind

Ja, ... noch eine klassische Pentax ;)

Technische Daten - tdb
Manufacturer Asahi Pentax
Manufactured 1976 - 1984
Price
Type 35mm full-frame SLR camera with open-aperture center-weighted Through-The-Lens meter.
Lens Mount Pentax K bajonet
Shutter Horizontal-run, rubberized silk focal-plane shutter;
speeds from 1 to 1/1000s, plus "B";
shutter lock and "Cocked" indicator.
Flash Synchronization FP and X sockets, plus hot/cold accessory shoe for X contact;
1/60s X synchronization
Self-timer Delays shutter release to 4-12s;
self-timer starter button provided
Viewfinder Silver-coated pentaprism finder;
split-image microprism focusing screen (8 interchangeable screens);
95% of picture-taking area visible and 0.97x magnification with 50mm lens at infinity);
-1.0 diopter exepiece.
Information viewfinder shows f/stop, shutter speed and tri-colored LED read-out dots.
Correction lens adaptor M, Magnifier M and Refconverter M fit the viewfinder frame.
Mirror and diaphragm Instant return mirror and automatic diaphragm.
Depth-of-field preview with self-timer lever.
Film wind and rewind Ratchet-type rapid winder lever, plastic-tipped for winding comfort.
162° throw with a stand-off angle of 20°.
Rewind crank for speedy film rewind.
Film loading New magic-needle quick/sure loading.
Exposure counter Automatic reset type
Exposure meter Open-aperture, center-weighted Trough-The-Lens meter, with GPD cells for fast light response, with tri-colored LED exposure read-out, rapid wind lever and shutter release button acting as meter switch.
Exposure range: EV 1-19 (ASA100, f/1.4), Film speed range ASA 25-1600.
Power Source Two 1.5V silver oxide batteries (G13);
LED's double as battery check lamp.
Back cover Standard back with memo holder, interchangeable with Magazine Back MX, Dial Data MX for data recording on film.
Body Size 135.5 x 82.5 x 49.5 mm (W x H X D)
Body weight 495g
Zubehör

Sonstiges
Im Netz Camerapedia
Rangefinder Cameras
The Onlinedarkroom (Pentax MX vs Olympus OM-1)
Pentax MX Fans
PansFilmCameras
Lomography
Lomography
Dimitrov Bojidar
Pentaxforums
Daniel J. Schneider
Mein Eindruck
