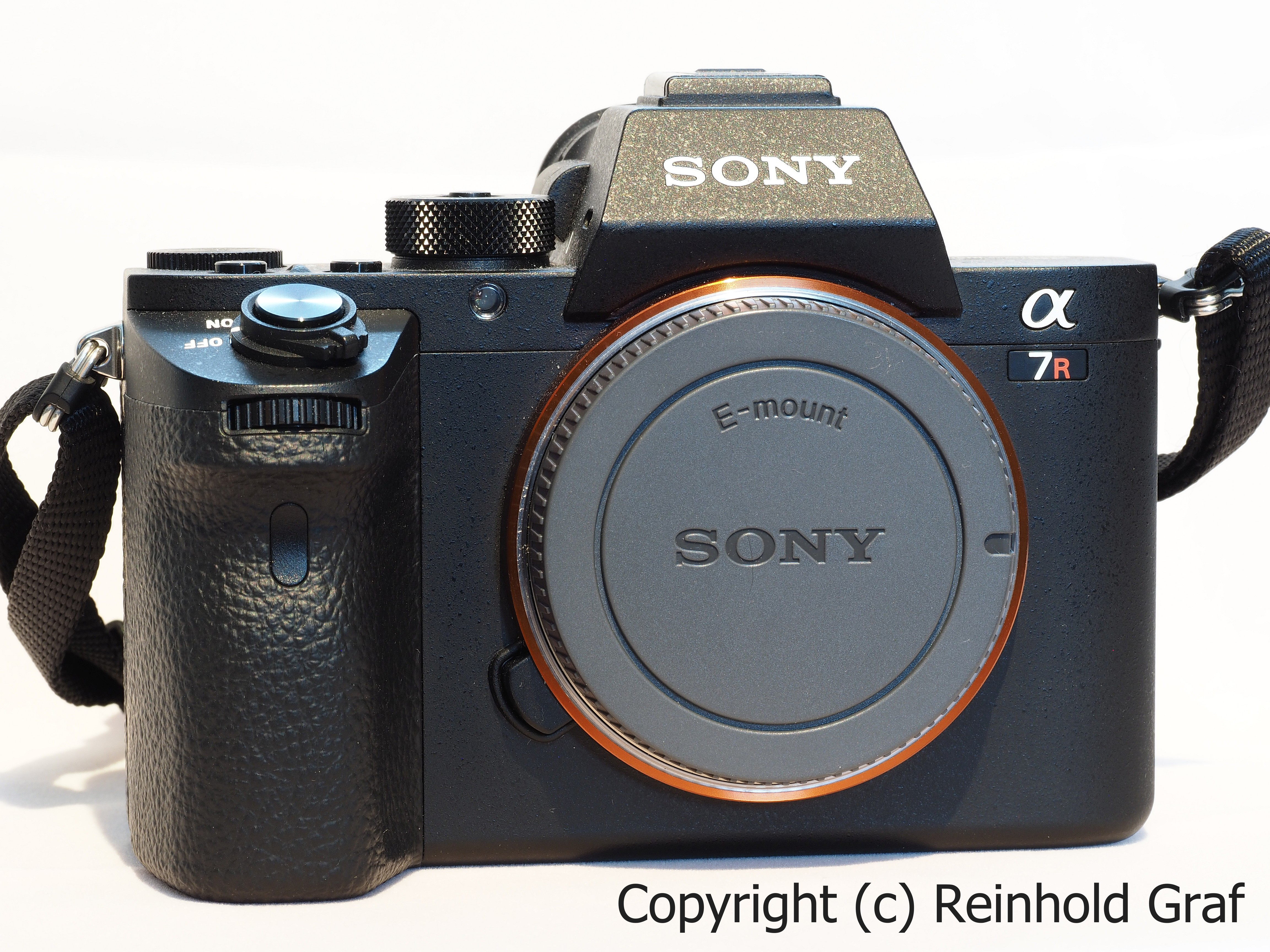

Sony A7R2
The Story Behind
It was a decision as easy as can be ...

To support and/or substitute my good old Canon EOS 5D in using old glass without having to worry about mirror crashes any longer.

In the past at least two times I crashed my 5D mirror when using wonderful old lenses.

Technical Data
Manufacturer Sony
Build 2016 ff.
Camera Type Interchangeable Lens Digital Camera
Image Sensor Effective pixel number of camera:
Approx. 42 400 000 pixels

Total pixel number of camera:
Approx. 43 600 000 pixels
Image Format 35 mm full size (35.9 mm × 24.0 mm), CMOS image sensor
Steady Shot In-camera sensor shift image stabilization system
Anti-Dust Charge protection coating on image sensor and image sensor shift mechanism
Auto Focus System Phase detection system/Contrast detection system
Sensitivity Range –2 EV to +20 EV (at ISO 100 equivalent with F2.0 lens)
AF Illuminator Approx. 0.3 m to 3 m (0.99 ft. to 9.8 ft.) (When using an FE 28-70 mm F3.5-5.6 OSS)
Electronic Viewfinder Electronic viewfinder with 2 359 296 dots
Frame Coverage 100%
Magnification Approx. 0.78 × with 50 mm lens at infinity, –1 m–1
Eye Point Approx. 23 mm from the eyepiece, 18.5 mm from the eyepiece frame at –1 m–1 (CIPA standard compliant)
Diopter Adjustment –4.0 m–1 to +3.0 m–1
LCD Monitor 7.5 cm (3.0 type) TFT drive
Total Number of Dots 1 228 800 (640 × 4 (RGBW) × 480) dots
Exposure Metering Method 1 200-zone evaluative metering
Metering Range –3 EV to +20 EV (at ISO 100 equivalent with F2.0 lens)
ISO Sensitivity Still images:
ISO 100 to 25 600 (Extended ISO: Minimum ISO 50, maximum ISO 102 400), [ISO AUTO] (ISO 100 to 6 400, Maximum/Minimum can be set.)

Movies:
ISO 100 to 25 600 equivalent, [ISO AUTO] (ISO 100 to 6 400 equivalent, Maximum/Minimum can be set.)
Exposure Compensation ±5.0 EV (switchable between 1/3 EV and 1/2 EV steps) When using exposure compensation dial: ±3.0 EV (1/3 EV step)
Shutter Type Electronically-controlled, vertical-traverse, focal-plane type
Speed Range Still images:
1/8 000 second to 30 seconds, BULB

Movies:
1/8 000 second to 1/4 second (1/3 EV step) – 1080 60i-compatible device up to 1/60 second in AUTO mode (up to 1/30 second in Auto slow shutter mode) – 1080 50i-compatible device up to 1/50 second in AUTO mode (up to 1/25 second in Auto slow shutter mode)
Flash Sync Speed 1/250 second
Continuous Shooting Maximum 5 images per second/ Maximum 2.5 images per second
(Based on our measurement conditions. The speed of continuous shooting can be slower, depending on the shooting conditions.)

The number of continuous shots:
Extra fine 24 images
File Format JPEG (DCF Ver. 2.0,Exif Ver. 2.3, MPF Baseline) compliant, RAW (Sony ARW 2.3 format)

Movie (XAVC S format):
MPEG-4 AVC/H.264 XAVC S ver.1.0 format compliant

Video:
MPEG-4 AVC/H.264

Audio:
LPCM 2ch (48 kHz 16 bit)

Movie (AVCHD format):
AVCHD format Ver. 2.0 compatible

Video:
MPEG-4 AVC/H.264

Audio:
Dolby Digital 2ch, equipped with Dolby Digital Stereo Creator
• Manufactured under license from Dolby Laboratories.

Movie (MP4 format):
Video:
MPEG-4 AVC/H.264

Audio:
MPEG-4 AAC-LC 2ch
Recording Media Memory Stick PRO Duo media, SD card
Input/Output terminals Multi/Micro USB Terminal*: Hi-Speed USB (USB 2.0)

HDMI: HDMI type D micro jack

Microphone Terminal: 3.5 mm Stereo mini jack

Headphones Terminal: 3.5 mm Stereo mini jack
* Supports Micro USB compatible devices.
Battery Pack Rechargeable battery pack NP-FW50
Power Consumption When using an FE 28-70 mm F3.5-5.6 OSS

When using the viewfinder: Approx. 3.2 W
When using the monitor: Approx. 2.7 W
Dimensions (W x H x D) 126.9 mm × 95.7 mm × 60.3 mm
(5 inches × 3 7/8 inches × 2 3/8 inches)
(excluding protrusions)
Mass Approx. 625 g (1 lb 6.0 oz) (with battery and Memory Stick PRO Duo media)
Approx. 582 g (1 lb 4.5 oz) (body only)
Operating Temperatures 0°C to 40°C (32°F to 104°F)
Wireless LAN Supported format: IEEE 802.11 b/g/n

Frequency band: 2.4 GHz bandwidth

Security: WEP/WPA-PSK/WPA2-PSK

Connection method: Wi-Fi Protected Setup™ (WPS)/Manual Access method: Infrastructure mode

NFC: NFC Forum Type 3 Tag compliant
Miscellaneous
Link(s) There are a whole bunch of reviews on the web ... just a few:
35mmc
KenRockwell
photographyLife

My Impressions
